New CSD series by C-Job Naval Architects

C-Job Naval Architects today launched its new Cutter Suction Dredger (CSD) series and headlining the series is an innovative new self-propelled CSD concept design to showcase its possibilities.

The 34-inch self-propelled CSD features cutter power of 3500 HP and a total installed power of approx. 26000 HP.

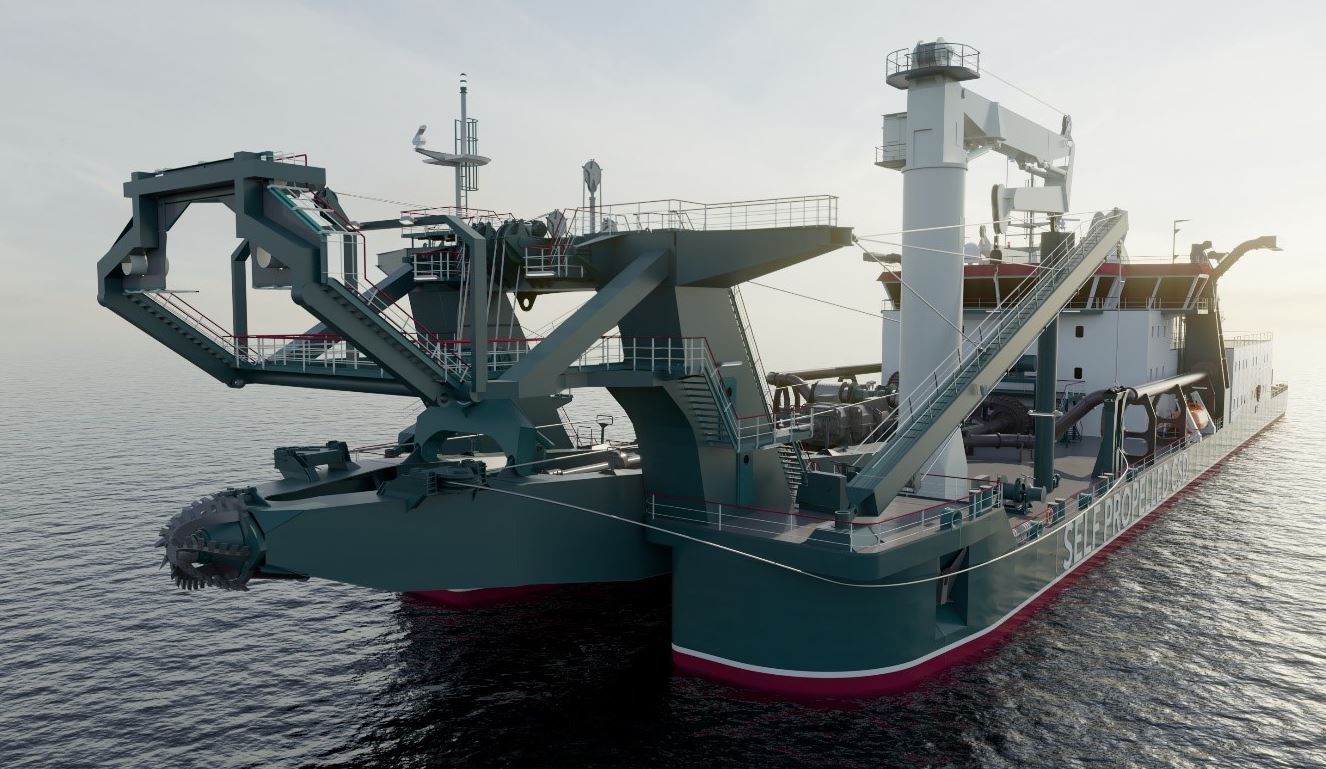

C-Job photo

The dredger includes two 6300 HP dredge pumps on deck and one 3500 HP submerged dredge pump on the cutter ladder enabling a maximum dredging depth of 95 feet. The self-propelled CSD boasts a length of 296 feet, which can be extended to provide an increased swing width.

Commenting the latest news, Todd Allen, VP Business Development at C-Job, said: “The new CSD series is a bold design that brings industry leading performance in a dynamic modular package. With advanced features like motion compensation and a wide range of options it demonstrates the start of what is possible with the C-Job CSD series.”

The CSD series presents the solution for mid-range cutter suction dredgers featuring a dredge discharge diameter of 20 to 40 inch and total installed power from any size up to 30000 horsepower.

Thanks to the adaptive platform underpinning the CSD series, shipowners can completely tailor the design to their desired operational profile while benefitting from a full range of design solutions, said the company.

Options include self-propelled or stationary service, anchor boom system, barge loading system, motion compensation in the spud carrier system, Christmas tree system, and spud tilting system etc.

In terms of fuel options, in addition to standard systems designs can also include renewable marine fuel such as methanol or a combination via dual-fuel propulsion.

Main particulars of the self-propelled CSD

Length over all                                 360’ 11”                             (110m)

Breadth                                              82’                                       (25m)

Depth                                                 27’ 11”                                (8.5m)

Max dredging depth                       95’ 2”                                  (29m)

Discharge pipe                                 34” – 36”                            (850 – 900mm)

Cutter power                                   3500 HP

Pump power                                    16100 HP

Total installed power                     26000HP

Class:                                                  ABS

Flag                                                     United States of America

Photo: C-Job
